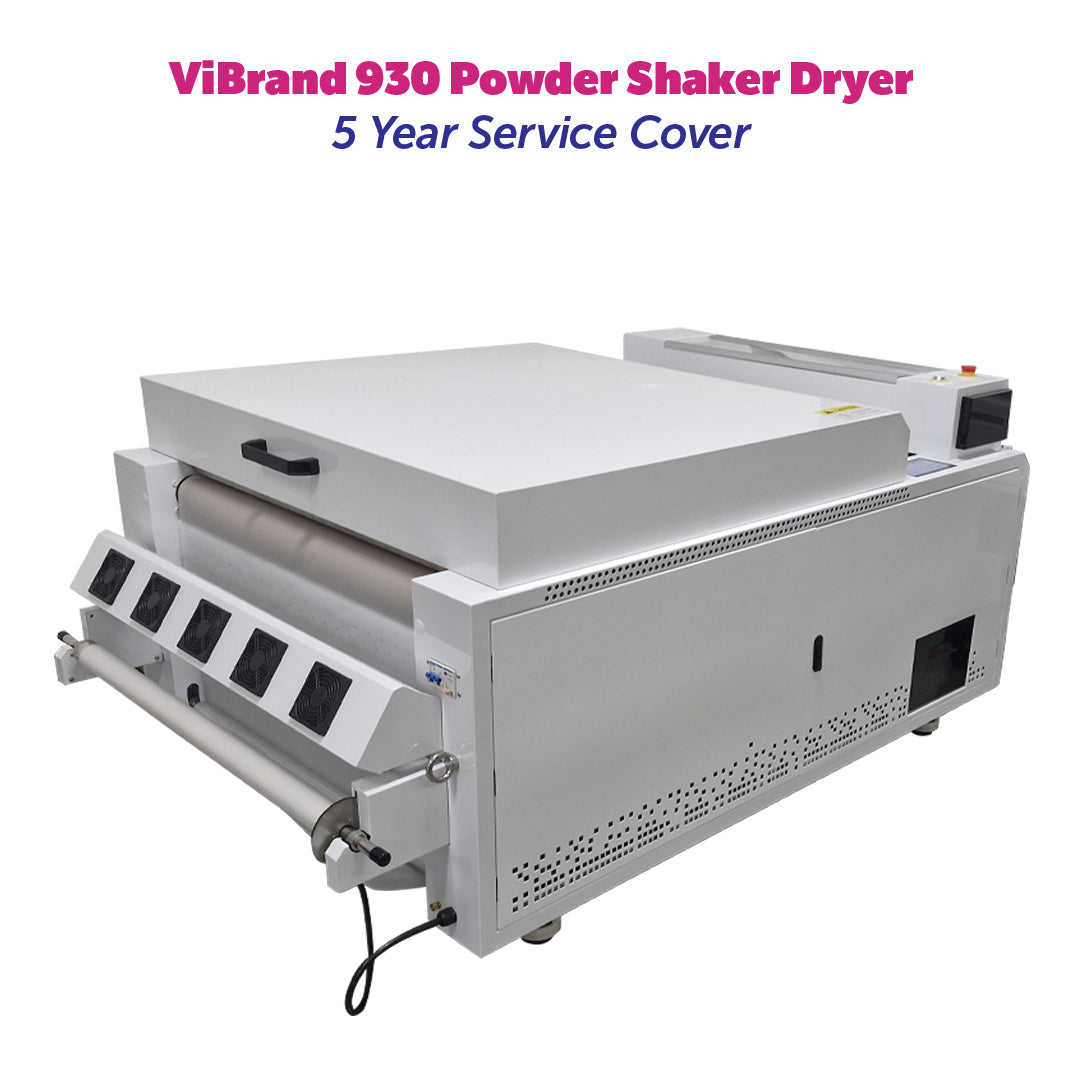

ViBrand 930 Powder Shaker Dryer

Precision, Stability & Efficiency for DTF Production

ViBrand DTF Powder Shaker Dryers are built to deliver consistent curing, stable film feeding, and professional-grade performance for Direct-to-Film workflows. Designed with innovative engineering and user-friendly controls, this model is designed to deliver consistent quality output with maximum production flexibility, minimum labour and enhanced operator safety.

Technical Specifications

• Max Media Width: 930mm (900mm recommended)
• Max Feed Speed: 60m/hr
• Production Speed: 27m²/hr (using 900mm film)*
• Heating System: Infrared Quartz curing lamps
• Feed System: Powered belt drive with vacuum hold-down and a
  powered take-up
• Air System: Enclosed with recycling, two-stage fume filters and
  glycol extraction
• Lid System: Gas assisted opening and closing
• Machine Dimensions (L × W × H):
  VB-930 Model: 1950 × 1360 × 910 mm, 350kg (not crated)
  Packaging: 1980 × 1450 × 990 mm, 450kg (crated)
• Power Supply: 32A Single Phase, 240V
• Power Cabling: 1.5m, 3 round-pin plug with screw-in casing
• Power Consumption: 7.7Kw (maximum total draw)
• Warranty: 12 months (extendable)**

* This is a typical figure. Actual results will depend on a range of factors including the operational environment, film type, printer model, print mode and image coverage density

** Comprehensive cover with local Australian support and repair. Optional service extension up to a maximum total of 5 years. Terms and conditions apply so please contact our sales department for details prior to purchase.

Key Features & Benefits

• Belt transfer with optical feed sensor and adjustable vacuum
  ➤ Quicker to load with less labour and operator oversight
  ➤ Ensures smooth and stable curing with less slippage and skewing.
  ➤ Can be used for short runs with reduced feed-in and feed out wastage / cost
  ➤ Independent powered take-up enables extended production with
  max efficiency
• Fully enclosed design with recirculated airflow, integrated fume
  and glycol extraction
  ➤ Enhanced installation and operational flexibility
  ➤ Maximum productivity with minimum oversight and impact
  ➤ Greatly reduced smell with improved operator safety and comfort
  ➤ Glycol residue is extracted and sent to a tank with an integrated fill sensor

• Pre-heated powder compartment with adjustable temperature
  and flow rate
  ➤ Can be operated under a range of environmental conditions
  ➤ Smooth and even application ensures superior results with
  optimal consumption
  ➤ Has a large recovery bin for extended operation with minimal
  waste and oversight
• Digital display with touch interface and smart controls
  ➤ Suits a wide range of film types
  ➤ Quick to setup and easy to adjust
  ➤ Flexible operation with a high degree of adjustment

• Quality heating elements
  ➤ Designed for reliable and durable operation
  ➤ Delivers precise and consistent heat for optimal quality
• Maximum performance with flexible installation and easy maintenance
  ➤ Offers high productivity for performance printers
  ➤ Suits semi-commercial studios as well as larger operations
  ➤ Casters with integrated locks enables easy placement and movement
  ➤ Quick to load and easy to clean with a power-assisted lid lifting mechanism

Additional Advantages

• Backed by local support from ViBrand DTF.

• Includes 12-month warranty (excludes misuse).

ViBrand DTF Powder Shaker Dryers are engineered for smooth, efficient, and stable DTF curing, helping you increase output while reducing downtime.
