Mimaki TxF330-800 800mm DTF PrinterHigh-Production 800mm Direct-to-Film Printer

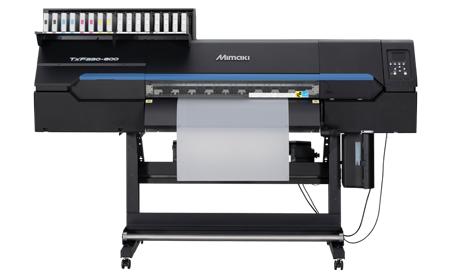

The Mimaki TxF330-800 is Mimaki's flagship 800 mm Direct-to-Film printer, developed for professional garment decorators, DTF production businesses and trade printers requiring higher output, reliable white ink performance and consistent long-run production.
Powered by Mimaki's 330 Series print engine, the TxF330-800 is available in two configurations:
CMYK + White – optimised for maximum DTF production output.
CMYK + Sky Blue + Pale Pink + White – expanded colour reproduction for premium apparel, photographic images, fashion, merchandise and colour-critical work.
With support for 100 metre DTF film rolls, an 800 mm print width and Mimaki's automated nozzle checking, recovery and white-ink circulation technologies, the TxF330-800 is designed for serious commercial DTF production.
Key Features

• 800 mm maximum print width

• Mimaki high-performance 330 Series print engine

• Approximately 1.5× productivity compared with previous models in CMYK + White configuration

• Mimaki production example of approximately 90 large-format graphic T-shirts per hour

• CMYK + White productivity configuration

• Optional Sky Blue + Pale Pink expanded colour gamut

• Supports 100 metre DTF film rolls

• Supports up to 4 litres of white ink

• Ink supplies can be changed during printing

• MCTv2 white ink circulation

• NCU automatic nozzle checking

• NRS nozzle recovery

• Mimaki Feed Tension Technology for consistent long-run film transport

• Genuine Mimaki PHT50 heat-transfer pigment inks

• ECO PASSPORT certified PHT50 ink colours

• RasterLink workflow

• Designed for continuous professional DTF production


High-Volume DTF Without Sacrificing Print Quality
The TxF330-800 combines increased production speed with the image quality of Mimaki's 330 print platform.
In the CMYK + White configuration, the printer is designed to produce dense solid colours, smooth gradients and detailed artwork while substantially increasing production capacity.
For businesses producing large volumes of gang sheets, workwear, sportswear, merchandise or custom apparel, the wider 800 mm format also provides more usable printing area and greater nesting flexibility than conventional 600 mm DTF systems.
Expanded Colour Option
The TxF330-800 can also be configured with Sky Blue and Pale Pink in addition to CMYK and White.
Sky Blue expands vivid blues and saturated greens, while Pale Pink improves reproduction of bright pinks and strong reds.
The expanded gamut also helps reproduce smoother skin tones, detailed illustrations, photography and difficult brand colours.
This configuration is particularly suited to businesses producing premium fashion, retail merchandise and colour-critical custom garments.
Designed for Long Production Runs
DTF production relies heavily on stable white ink and consistent film feeding.
Mimaki addresses both areas in the TxF330-800.
MCTv2 – Mimaki Circulation Technology 2 continuously circulates white ink to support stable discharge while helping reduce ink waste during nozzle cleaning.
NCU – Nozzle Check Unit automatically detects missing nozzles and can initiate cleaning before nozzle issues affect a production run.
NRS – Nozzle Recovery System can temporarily substitute functioning nozzles when a nozzle cannot immediately be recovered, helping production continue.
Mimaki Feed Tension Technology assists with accurate film transport during long print runs.
Applications
The Mimaki TxF330-800 is suitable for producing transfers for:

• T-shirts

• Hoodies

• Workwear

• Sportswear

• Fashion garments

• Bags

• Caps

• Promotional products

• Merchandise

• Uniforms

• Custom apparel

• Trade DTF gang sheets


Specifications
Specification
Mimaki TxF330-800
Printing Technology
On-demand piezo inkjet
Printheads
2 staggered heads
Maximum Print Width
800 mm
Maximum Media Width
810 mm
Resolution
600 / 900 / 1200 dpi depending on mode
Ink
Mimaki PHT50 heat-transfer pigment
Colours
CMYK, White, Sky Blue, Pale Pink depending on configuration
Standard Ink Pack
600 ml colour / 500 ml white
White Ink Circulation
Yes
Maximum Roll Diameter
250 mm
Maximum Roll Weight
45 kg
Interface
1000BASE-T Ethernet / USB 2.0
Dimensions
2,084 × 700 × 1,389 mm
Weight
Approx. 161 kgComplete DTF Solutions from Machines Plus
The printer is only one part of a successful DTF production system.
Talk to Machines Plus about a complete TxF330-800 solution including compatible:

• DTF powder shaker and curing systems

• DTF film

• DTF powder

• Heat presses

• Genuine Mimaki PHT50 ink

• Installation

• Operator training

• RasterLink setup

• Colour management

• Workflow optimisation

• Technical support


Machines Plus specialises in complete garment-decoration solutions rather than simply supplying equipment.
Need help configuring the right TxF330-800 package for your production volume?
Request a Quote
Talk to Machines Plus about your current DTF output and where you want your production capacity to go next.
